Container Specification

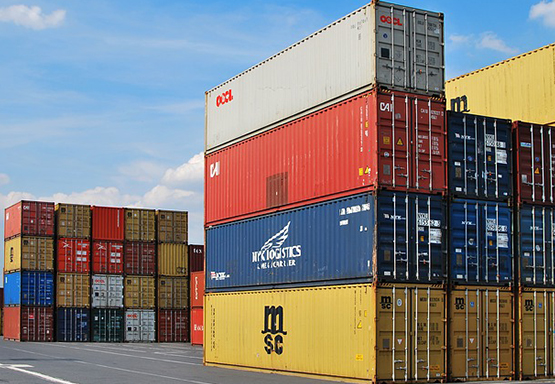

Sea Container Specification
| Type of Container | Internal Dimension(mm) | Door Opening(mm) | Capacity(cu.m.) | Max Pay Load(Kgs) | Container Tare (Kgs) | Max Gross Wegiht(Kgs) |
|---|---|---|---|---|---|---|
20 ft Dry Container |
L: 5,900 W:2,345 H:2,380 |
W: 2,345 H:2,380 |
32.8 | 21,750 | 2,250 | 24,000 |
40 ft Dry Container |
L: 12,000 W:2,348 H:2,380 |
W: 2,338 H:2,277 |
67.1 | 26,660 | 3,680 | 30,480 |
20 ft Open Top Container |
L: 5,900 W:2,346 H:2,330 |
W: 2,338 H:2,277 |
32 | 18,120 | 2,220 | 20,320 |
40 ft Open Top Container |
L: 12,037 W:2,345 H:2,330 |
W: 2,338 H:2,277 |
65.5 | 26,380 | 4,100 | 30,480 |
20 ft Steel Reefer Container(integral type) |
L: 5,504 W:2,290 H:2,263 |
W: 2,290 H:2,239 |
28.5 | 27,420 | 3,060 | 30,480 |
40 ft High Cube Steel Reefer Container |
L: 11,573 W:2,290 H:2,544 |
W: 2,290 H:2,509 |
67.4 | 29,210 | 4,790 | 34,000 |
Air Container Specification

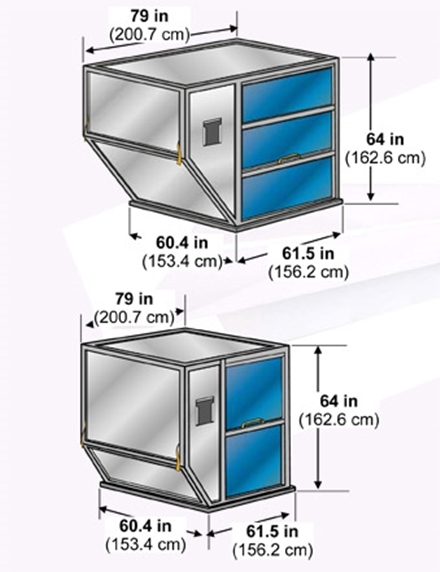

Common designation: LD-1
- IATA ULD code: AKC contoured container
- Also known as: AVC, AVD, AVK, AVJ, and forkable AVY
- Rate class: Type 8
- Description: Half-width lower hold container with one
- angled side. Door is either canvas or solid.
- Suitable for: 747, 767, 777, 787, MD-11 lower hold
- Door opening: 58 x 61-in (147 x 155-cm)
- Maximum gross weight: 1,588 kg (3,501 lb)
- Tare weight: 70 to 170-kg (155 to 375-lb)
- AS1825 volume: 5.0 m3 (175 ft3)
- Boeing volume: 5.0 m3 (175 ft3)
Common designation: LD-2
- IATA ULD code: DPE contoured container
- Also known as: APA, DPA, and forkable DPN
- Rate class: Type 8D
- Description: Half-width lower hold container with one
- angled side. Door is either canvas or solid.
- Suitable for: 747, 767, 777, 787 lower hold
- Door opening: 44 x 60-in (112 x 152-cm)
- Maximum gross weight: 1,225 kg (2,700 lb)
- Tare weight: 92 kg (203 lb)
- AS1825 volume: 3.5 m3 (124 ft3)
- Boeing volume: 3.5 m3 (124 ft3)
Common designation: LD-3
- IATA ULD code: AKE contoured container
- Also known as: AKE, AVA, AVB, AVC, AVK, DVA, DVE, DVP,
- XKS, XKG, and forkable AKN, AVN, DKN, DVN, and XKN
- Rate class: Type 8
- Description: Half-width lower hold container with one
- angled side. Door is either canvas or solid.
- Suitable for: 747, 767, 777, 787, DC-10, MD-11 lower hold
- Door opening: 58 x 61-in (147 x 155-cm)
- Maximum gross weight: 1,588 cm (3,500 lb)
- Tare weight: 82 kg (181 lb)
- AS1825 volume: 4.5 m3 (159 ft3)
- Boeing volume: 4.5 m3 (160 ft3)
Common designation: LD-3 Reefer
- IATA ULD code: RKN contoured cool container
- Also known as: RVN
- Rate class: Type 8
- Description: Half-width lower hold insulated container with
- one angled end. Door is solid. Most examples are forkable.
- Suitable for: 747, 767, 777, 787, DC-10, MD-11 lower hold
- Door opening: 54 x 55-in (137 x 140-cm)
- Maximum gross weight: 1,588 cm (3,500 lb)
- Tare weight: 210 kg (463 lb)
- AS1825 volume: 4.5 m3 (159 ft3) plus internal volume (as is)
Common designation: Half pallet
- IATA ULD code: PLA half pallet with net
- Also known as: PLB, FLA, P9A, P9B, P9P, P9R, and P9S
- Rate class: Type 6
- Description: Half pallet is contoured for lower hold and main deck.
- Suitable for: 747, 777, 787 lower hold; 707F, 727F, 737F
- main deck with contoured load
- Maximum gross weight: 3,175 kg (6,999 lb)
- Tare weight: 91 kg (200 lb)
- AS1825 volume: 7.1 m3 (250 ft3)
Common designation: LD-4
- IATA ULD code: ALP rectangular container
- Also known as: ALD, AWD, AWZ, DLP, and forkable ALB, ALC, AWB, and AWC
- Rate class: Type 8
- Description: Full-width lower hold container. Door is canvas
- with built-in door straps.
- Suitable for: 767, 777, 787 lower hold
- Door opening: 92 x 61-in (234 x 155-cm)
- Maximum gross weight: 2,449 kg (5,399 lb)
- Tare weight: 120 kg (264 lb)
- AS1825 volume: 5.7 m3 (200 ft3)
- Boeing volume: 5.5 m3 (195 ft3)

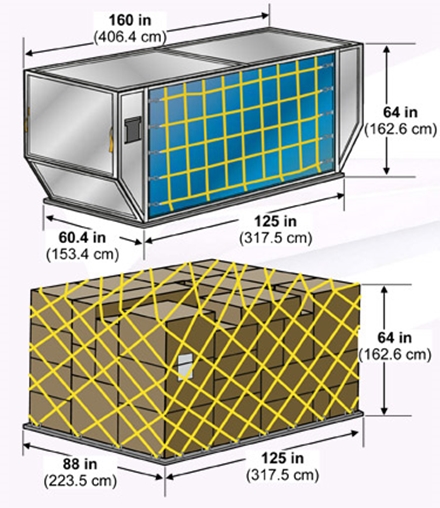

Common designation: LD-6
- IATA ULD code: ALF contoured container
- Also known as: AWA, AWF, and forkable AWC
- Rate class: Type 6W
- Description: Full-width lower hold container with angled ends.
- Door is canvas with built-in door straps.
- Suitable for: 747, 777, 787, DC-10, MD-11 lower hold
- Door opening: 120 x 60-in (305 x 152-cm)
- Maximum gross weight: 3,175 kg (7,000 lb)
- Tare weight: 230 kg (507 lb)
- AS1825 volume: 9.1 m3 (322 ft3)
- Boeing volume: 8.9 m3 (316 ft3)
Common designation: LD-7
- IATA ULD code: P1P flat pallet with net
- Also known as: PAA, PAG, PAJ, PAP, PAX, P1A, P1C, P1D, and P1G
- Rate class: Type 5
- Description: Universal general-purpose flat pallet for lower holds and main decks.
- Suitable for: Widebody: All aircraft lower holds and main decks
- Standard-body: 707F, 727F, 737F, 757F, DC8F, DC9F main decks
- Maximum gross weight: 4,626 kg (10,198 lb)
- Tare weight: 105 kg (231 lb)
- AS1825 volume: 10.5 m3 (370 ft3)
- Boeing volume: 10.7 m3 (379 ft3)

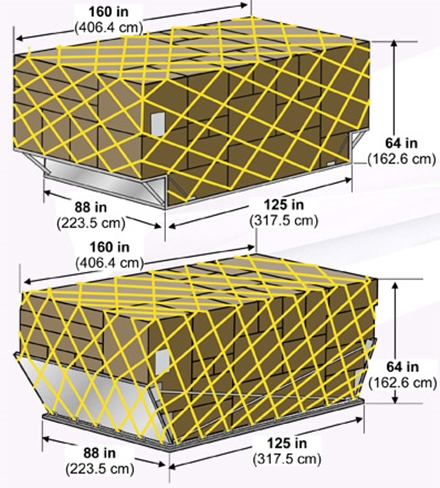

Common designation: LD-7
- IATA ULD code: PAD P1P pallet with folding wings and net Also known as: PAX and P1X
- Rate class: Type 5
- Description: P1P base with folding wings for overhang.
- Suitable for: 747, 777, 787, DC-10, MD-11 lower holds
- Maximum gross weight: 5,000 kg (11,023 lb)
- Tare weight: 152 kg (335 lb)
- AS1825 volume: 14.0 m3 (495 ft3)
Common designation: LD-7
- IATA ULD code: XAW P1P pallet with fixed-angle wings and net
- Rate class: Type 5
- Description: P1P base with fixed wings for overhang.
- Suitable for: 747, 777, 787, DC-10, MD-11 lower holds
- Maximum gross weight: 5,000 kg (11,023 lb)
- Tare weight: 170 kg (375 lb)
- AS1825 volume: 14.0 m3 (495 ft3)
Common designation: LD-8
- IATA ULD code: DQF
- Also known as: ALE, ALN, DLE, DLF, DQP, and MQP
- Rate class: Type 6A
- Description: Full-width lower hold container angled at both ends. Door is canvas with built-in door straps.
- Suitable for: 767, 787 lower hold
- Door opening: 92 x 62-in (234 x 157-cm)
- Maximum gross weight: 2,450 kg (5,401 lb)
- Tare weight: 127 kg (280 lb)
- AS1825 volume: 7.1 m3 (252 ft3)
- Boeing volume: 6.9 m3 (245 ft3)

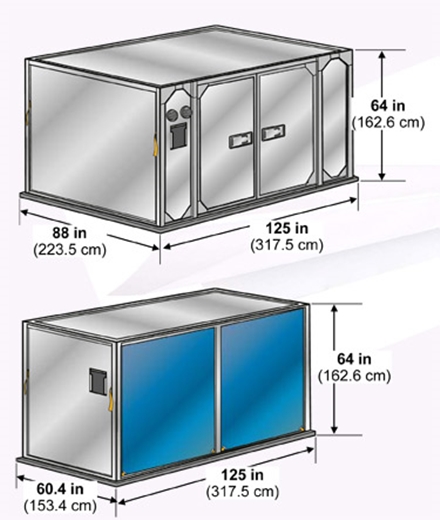

Common designation: LD-9
- IATA ULD code: AAP enclosed pallet on P1P base
- Rate class: Type 5
- Description: General-purpose enclosed container fitted to P1P base. Door is canvas with built-in net door straps, or solid.
- Suitable for: 747, 767, 777, 787, DC-10, MD-11 lower hold
- Door opening: 118 x 58 in (300 x 147-cm)
- Maximum gross weight: Lower hold, 4,624 kg (10,194 lb);
- main deck, 6,000 kg (13,227 lb)
- Tare weight: Canvas door, 215 kg (473 lb);
- solid door, 270 kg (595 lb)
- AS1825 volume: 10.8 m3 (381 ft3)
- Boeing volume: 10.8 m3 (381 ft3)
Common designation: LD-9 Reefer
- Common designation: LD-9 Reefer
- IATA ULD code: RAP cool container on P1P base
- Rate class: Type 5
- Description: Insulated container with solid door.
- Suitable for: 747, 767, 777, 787, DC-10, MD-11 lower hold
- Door opening: 85 x 58-in (216 x 147-cm)
- Maximum gross weight: Lower hold, 4,626 kg (10,198 lb);
- main deck, 6,000 kg (13,227 lb)
- Tare weight: 400 kg (882 lb)
- Internal volume: 9.6 m3 (339 ft3)
Common designation: LD-11
- IATA ULD code: ALP rectangular container
- Also known as: ALD, AW2, AWB, AWD, AWZ, DLP, DWB, and MWB. Refrigerated version: RWB, RWD, and RWZ.
- Rate class: Type 6
- Description: Full-width lower hold container. Door is canvas.
- Center post swings clear for loading. Refrigerated version has solid door.
- Suitable for: 747, 777, 787, DC-10, MD-11 lower hold
- Door opening: 120 x 61-in (305 x 155-cm)
- Maximum gross weight: 3,176 kg (7,002 lb)
- Tare weight: 185 kg (408 lb)
- AS1825 volume: 7.4 m3 (262 ft3)
- Boeing volume: 7.2 m3 (256 ft3)
